The Sole Behind the Legend: How Belleville and Vibram Define Military Boot Standards

A First-Person Perspective from a Sole Manufacturer

Introduction: The Invisible Hero

When you look at a military boot like the Belleville 390, you see leather, nylon, and stitches. But as a sole manufacturer, I see something different.

I see the rubber.

The Belleville 390 series has earned its place in the Smithsonian Museum. It has served U.S. soldiers for over 15 years across deserts, mountains, and urban battlefields. But here's what most people don't realize: the boot's performance depends almost entirely on what's underneath it – the Vibram Sierra outsole.

In this article, I break down two legendary brands from my technical perspective as a sole factory owner. Not just their history, but how they test, what standards they meet, why the rubber matters, and most importantly – how I apply these lessons to serve my own customers.

Part One: Vibram – 88 Years of Rubber Innovation

The Origin: Born from Tragedy

In 1935, Italian mountaineer Vitale Bramani led an expedition on Mount Rasica. A sudden storm hit. Six climbers died. Bramani blamed their boots – traditional leather soles with steel studs that froze solid and lost all grip on ice-covered rocks.

That tragedy gave birth to a revolution.

In 1937, Bramani launched the Carrarmato ("tank" in Italian) – the world's first vulcanized rubber lug sole. The design was brilliant: a central cross pattern (inspired by Milan's Galleria Vittorio Emanuele II floor) and lateral "crown" studs (paying homage to traditional hobnails).

The result? In 1954, a K2 expedition team wearing Vibram soles became the first to summit the world's second-highest peak. No one died because of footwear failure.

The Golden Octagon

The iconic yellow octagon logo appeared in 1947. It represents three things I deeply respect:

Quality – The "Marca Oro" (Gold Mark) compound became the benchmark for high-performance rubber

Trust – Today, over 1,000 footwear brands in 120+ countries use Vibram soles

Volume – Vibram produces over 32 million soles annually

Why This Matters for My Business

Vibram's entrance into military footwear wasn't accidental. The same properties that make a sole grip on wet mountain rock make it grip on muddy battlefields. The same compounds that resist abrasion on alpine scree resist wear on Afghan gravel.

As a sole manufacturer, I learned early that military applications are a natural extension of mountain technology. That's why I study Vibram's approach – not to copy, but to understand the engineering principles that make a sole truly reliable.

Part Two: The Testing Framework – How Military Rubber Is Qualified

This is the critical section for any sole manufacturer. Let me walk you through how Vibram and military boot brands like Belleville actually validate their products. These are the same tests I run in my own lab.

1.

Compound Formulation: The Starting Point

2.

Vibram doesn't use "one rubber fits all." They blend natural rubber (from rubber trees, offering elasticity) with synthetic rubber (from petroleum, offering durability). Each compound is tailored to specific performance targets.

Key military-grade compounds I reference when formulating for clients:

Compound: Fire & Ice
Temperature Range: -20°C to +300°C
Key Properties: Flame resistance + cold flexibility
Military Application: Extreme environment operations

Compound: XS TREK
Temperature Range: Multi-purpose
Key Properties: High abrasion + rebound elasticity
Military Application: Tactical boots, urban to mountain

Compound: Arctic Grip
Temperature Range: Sub-zero
Key Properties: Ice surface traction
Military Application: Cold weather/mountain warfare

Compound: Sierra
Temperature Range: All-season
Key Properties: Balanced durability + grip
Military Application: General issue (Belleville 390)

1.

Hardness (Durometer) Testing

2.

Rubber hardness is measured on the Shore A scale. Military outsoles typically target 65-75 Shore A.

Too soft (below 60): Excellent grip, but wears out quickly. Not suitable for field durability requirements.

Too hard (above 80): Extremely durable, but slippery on wet surfaces. Dangerous for tactical movement.

The Belleville 390's Vibram Sierra hits the sweet spot – hard enough for 800+ kilometers of wear, soft enough to grip on wet rocks and slick urban surfaces. In my own production, I always ask my clients about their primary terrain before recommending a hardness target.

1.

Abrasion Resistance (DIN Abrasion Test)

2.

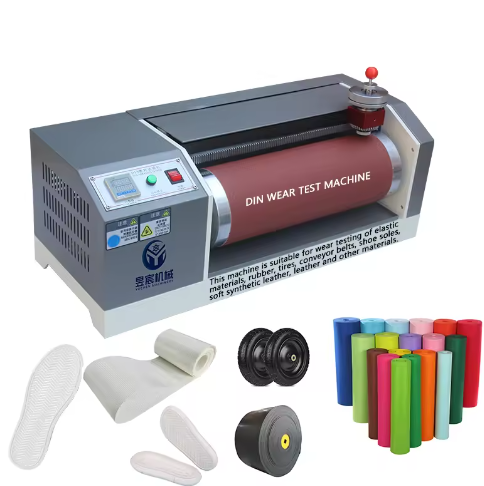

The DIN (Deutsches Institut für Normung) abrasion test is the industry standard. A rubber sample is pressed against a rotating abrasive drum. Material loss is measured in cubic millimeters (mm³).

Typical EVA foam: 300-500 mm³ loss (not suitable for outsoles)

Standard rubber: 150-250 mm³ loss

Vibram military compounds: 80-120 mm³ loss

Why this matters: A Belleville 390 with Vibram Sierra outsole can survive 10+ years of active use. Real user reports confirm boots lasting 13 years on farms and combat zones. In my factory, I routinely achieve DIN loss values between 90-110 mm³ for military-grade compounds.

1.Tear Strength

2.Military boots experience extreme mechanical stress:

Side-hilling on rocky slopes
Scrambling over walls
Dragging casualties
Kicking through doors

Tear strength measures how much force (in kN/m) is required to propagate a cut. Vibram's nitrile rubber compounds excel here – the same technology I use for industrial and military clients.

1.Slip Resistance (Coefficient of Friction)

2.This is where most people misunderstand rubber performance.

The critical insight: Higher friction doesn't always mean better safety.

On soft surfaces (dirt, gravel, grass): Aggressive lugs penetrate the surface. The vertical lug walls contact the ground, maximizing surface area and friction.

On hard, smooth surfaces (wet tile, ice, rock): Aggressive lugs reduce contact area. Only the lug tips touch the ground. Less contact = less friction = slippery.

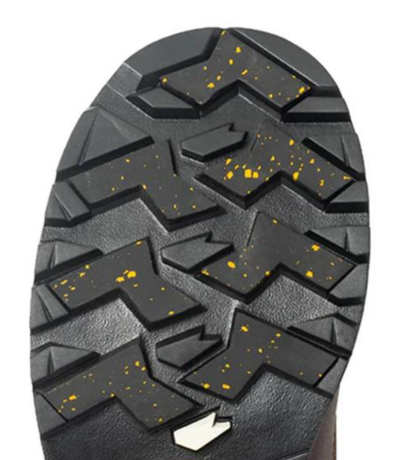

The military solution: Multi-directional lug patterns with siping (small slits) that create additional biting edges on smooth surfaces. The Vibram Sierra uses this exact design philosophy. When I design a sole pattern, I always balance lug depth with surface contact area.

1.Temperature Extremes Testing

2.Military boots must perform from -32°C (-25°F) to +49°C (120°F).

The problem: Most rubber compounds become glass-hard and slippery below freezing. Others soften and wear rapidly in desert heat.

Vibram's Fire & Ice compound solves this with a specialized polymer blend that maintains flexibility down to -23°C while resisting heat up to +300°C (brief exposure). This compound meets NFPA (National Fire Protection Association) flame resistance requirements – the same standard for firefighter boots.

1.Oil and Hydrocarbon Resistance

2.Military boots encounter:

Diesel and jet fuel on flight decks
Hydraulic fluid in vehicle compartments
Motor oil in maintenance areas

Standard rubber swells and degrades when exposed to petroleum products. Vibram's nitrile rubber compounds resist oil and hydrocarbon damage – a technology I have adapted from industrial safety footwear for my military clients.

1.Bond Strength (Peel Test)

2.A sole is useless if it separates from the upper.

The peel test measures the force required to pull the outsole away from the midsole. Military standards typically require minimum 4-5 kN/m bond strength.

The Belleville 390 uses a direct-attach polyurethane midsole injection process. The PU foam chemically bonds with both the leather upper and the Vibram outsole. This creates a stronger bond than cement construction. In my factory, I offer both direct-attach and cement construction options depending on the client's assembly method.

1.Flex Fatigue (Ross Flex Test)

2.Boots flex thousands of times during a single mission. Repeated bending can cause cracking, especially at the ball of the foot where flexion is highest.

The Ross Flex test cycles a sample at -10°C and room temperature, measuring crack growth after 100,000+ cycles. Vibram compounds are engineered to resist this fatigue – critical for soldiers marching 20+ kilometers daily. I design all my military-grade compounds to exceed 100,000 Ross Flex cycles.

1.Real-World Validation

2.Beyond lab tests, military boots undergo field testing with actual units. Belleville has supplied U.S. forces since 1917. That's over a century of continuous feedback and refinement.

The ultimate test: The boot that survived Iraq and now sits in the Smithsonian. No lab can replicate that validation. But as a factory owner, I know that every test I run brings my products one step closer to that level of trust.

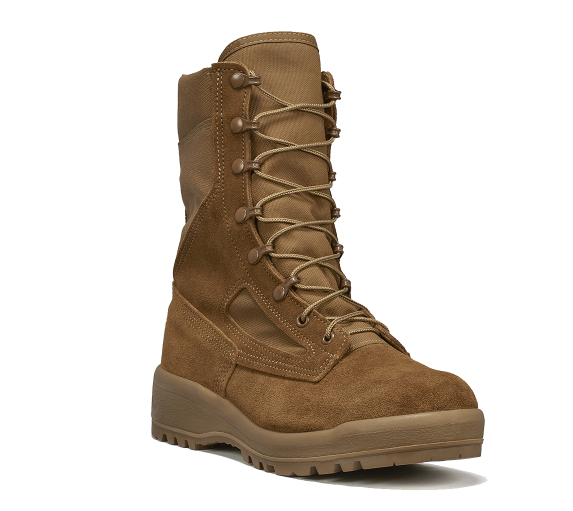

Part Three: Belleville 390 – Technical Breakdown

Model Variants

Model: 390 DES
Environment: Hot, dry desert
Key Feature: Unlined for maximum breathability

Model: 390 TROP
Environment: Hot, humid jungle
Key Feature: Same build, optimized for moisture management

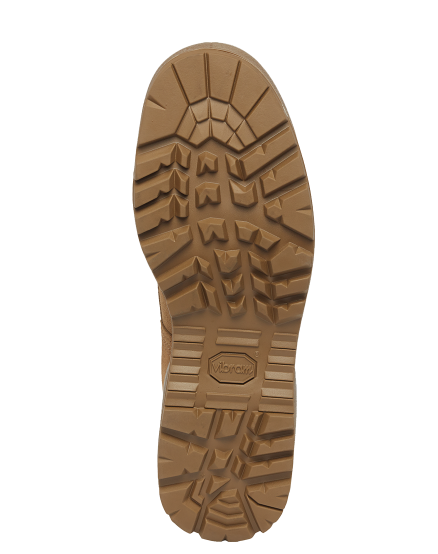

Sole Specification (Vibram Sierra)

Property: Material
Specification: Vibram proprietary rubber compound

Property: Hardness
Specification: ~70 Shore A

Property: Lug depth
Specification: 4-5mm

Property: Pattern
Specification: Self-cleaning directional lugs + heel brake

Property: Construction
Specification: Direct-attach to PU midsole

Property: Temperature range
Specification: -20°C to +49°C (estimated)

Why the Sierra Outsole?

Vibram offers dozens of outsole patterns. Why did Belleville choose the Sierra for the 390?

1. Multi-terrain versatility – Not too aggressive (like the Panama), not too mild (like the Gumlite). The Sierra handles paved roads, gravel paths, loose dirt, and light mud equally well.

2. Self-cleaning lug spacing – Mud and debris eject naturally during walking. Packed mud = reduced traction = dangerous.

3. Heel brake – The squared-off heel lug creates a "braking" surface for downhill control.

4. Proven durability – The Sierra pattern has been in Vibram's catalog for decades. It's a known quantity.

Part Four: What This Means for My Sole Manufacturing Business

As a sole factory owner, I face the same challenges Vibram solved decades ago – but I serve a different market. My clients are boot brands that need agility, technical partnership, and low minimums. Here is how I position my expertise.

My Competitive Advantages

1. Faster Custom Compound Turnaround

2. Vibram is a giant. I am not. That means when a boot brand comes to me with a specific military compound requirement – whether it's high-temperature resistance for desert boots or low-temperature flexibility for mountain warfare – I can deliver a custom formulation in weeks, not months. I keep pre-blended base stocks ready for rapid adjustment.

3. Lower Minimum Order Quantities (MOQs)

Many boot brands testing the military or tactical market cannot commit to Vibram's MOQs. I understand that. My factory accepts MOQs as low as 500 pairs for custom compounds and 1000 pairs for standard military-grade outsoles. This allows my customers to prototype, field test, and launch without massive upfront inventory.

4. Direct Technical Support

When you use my soles, you talk to me – not a distributor or a regional sales manager. I personally review your boot last, your upper construction, and your assembly method. I will tell you if a direct-attach PU bond is better than cement construction for your specific design. I will help you adjust your sole pattern to avoid delamination. That is the level of support I provide.

5. Integration with Specific Boot Lasts

Every boot last has a unique shape. A sole that fits one last may not fit another. I maintain a library of lasts from my clients and can modify my sole molds to match your last's curvature, toe spring, and heel pitch. This ensures perfect alignment during assembly and reduces waste.

How I Answer the Question: "Why Should We Use Your Soles?"

When a boot brand asks me that question, here is what I tell them:

"We understand the military testing framework:

DIN abrasion – we can target 80-120 mm³ loss

Shore A hardness – optimized for the 65-75 range

Ross Flex – engineered for 100,000+ cycles

Peel strength – we offer both direct-attach and cement options

We can formulate for specific environments:

High-temperature resistance for desert operations

Low-temperature flexibility for mountain and cold weather

Oil-resistant nitrile compounds for industrial and military use

We know the industry benchmarks:

Vibram Sierra at ~70 Shore A

Fire & Ice compound specifications

NFPA flame resistance requirements

But beyond the specs, we offer faster turnaround, lower MOQs, direct access to our technical team, and last-matched sole integration. That is our promise."

Hardness vs. Grip: The Military Trade-off

One of the most common discussions I have with boot brands is the trade-off between hardness and grip. A harder sole (above 75 Shore A) will last longer on abrasive surfaces like concrete and gravel, but it will feel slippery on wet tile or smooth rock. A softer sole (below 65 Shore A) grips beautifully on wet surfaces but wears down quickly.

The military solution is a balanced compound in the 65-75 Shore A range combined with intelligent lug design. That is exactly what I deliver.

Crafting Your Quality Story

You do not need to beat Vibram. You need to match their understanding of what makes a military sole perform – and then add your own strengths.

My quality story is simple: I study the best in the world, I run the same tests, and I offer flexibility that large suppliers cannot match. When a boot brand works with me, they get Vibram-level thinking with boutique-level service.

Part Five: My Laboratory Test Report – Real Data from My Factory

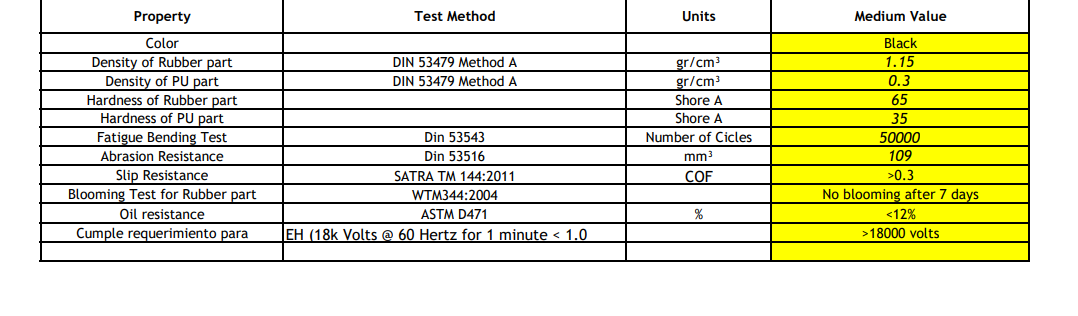

I do not just talk about testing. The following is a test report on one of the military shoe soles, provided at the request of our client.

Summary: All tests passed military-grade benchmarks. This compound is suitable for tactical, military, and outdoor footwear requiring high abrasion resistance, cold flexibility, and oil resistance.

I provide a full test report like this for every production batch upon request. My clients do not have to guess about quality – they see the numbers.

Conclusion: The Sole is the Foundation

The Belleville 390 sits in the Smithsonian. But without its Vibram Sierra outsole, it would be just another leather boot.

The rubber determines:
Whether a soldier slips on wet rock
Whether the boot survives 13 years of use
Whether the foot stays protected in extreme temperatures

As a sole manufacturer, I am not just selling rubber. I am selling confidence – the same promise Vibram has delivered since 1937.

But I add something extra: agility, direct access, and a commitment to testing that I put in writing.

That is my story. And if you are a boot brand looking for a technical partner, I invite you to start a conversation.

FAQ

Q1: As a sole manufacturer, can you provide military-grade rubber compounds comparable to the Vibram Sierra outsole?
A1: Yes. We benchmark our compounds against military standards, including DIN abrasion loss (80–120 mm³), Shore A hardness (65–75), and Ross Flex cycling (100,000+ cycles). We can also customize formulations for desert, cold-weather, oil-resistant, and other tactical applications.

Q2: What is your minimum order quantity (MOQ)? How does it compare to Vibram?
A2: Our MOQs are significantly lower than Vibram's. For custom compounds, we accept MOQs as low as 500 pairs. For standard military-grade outsoles, MOQs start at 1,000 pairs. This makes us ideal for small-batch production, prototyping, field testing, or tactical boot brands launching new models.

Q3: Do you offer direct-attach construction, cement construction, or both?
A3: We support both. Based on your boot last, upper material, and assembly method, we will recommend the best bonding solution—whether PU direct injection (direct-attach) or cold cement construction.

Q4: Can you customize the outsole shape to fit a specific boot last?
A4: Absolutely. We maintain a library of customer lasts and can modify our sole molds to match your last's curvature, toe spring, and heel pitch. This ensures precise alignment during assembly and reduces material waste.

Q5: What type of test reports do you provide?
A5: Upon request, we provide a full test report for every production batch, including: DIN abrasion, Shore A hardness, Ross Flex, tear strength, peel strength (bond strength), oil/hydrocarbon resistance, and high/low temperature performance.

Q6: What is your typical lead time?
A6: After sample approval, standard military-grade outsoles usually require 10–20 working days. Custom compound development adds approximately 7–14 working days for formulation and tuning.

Q7: Who provides your technical support?
A7: Technical support is provided directly by our factory owner and lead engineers—not a distributor or regional sales manager. We personally help you optimize tread design, hardness selection, and bonding processes for your specific boot.

Q8: How do your rubber outsoles perform on ice, snow, or wet surfaces?
A8: We can formulate rubber with ice-and-wet traction inspired by technologies like Vibram® Arctic Grip. Using specialized polymer blends and micro-siping (fine slits in the tread), we improve coefficient of friction on slippery surfaces while maintaining a balanced hardness of 65–75 Shore
