For many footwear brands, CKD (Completely Knocked Down) footwear can be an efficient way to export semi-finished shoes and complete the final assembly in the destination country.
At first glance, CKD footwear may seem simple:
Just separate the upper and outsole, ship them separately, and assemble them at the customer’s factory.
But in reality, a successful CKD footwear project involves much more than simply separating the shoe components.
The key is to make sure that the upper, outsole, last, and construction method work together correctly before mass production begins.
At Huadong Holding Group, we support different CKD footwear solutions, from selecting existing styles to developing completely customized footwear.

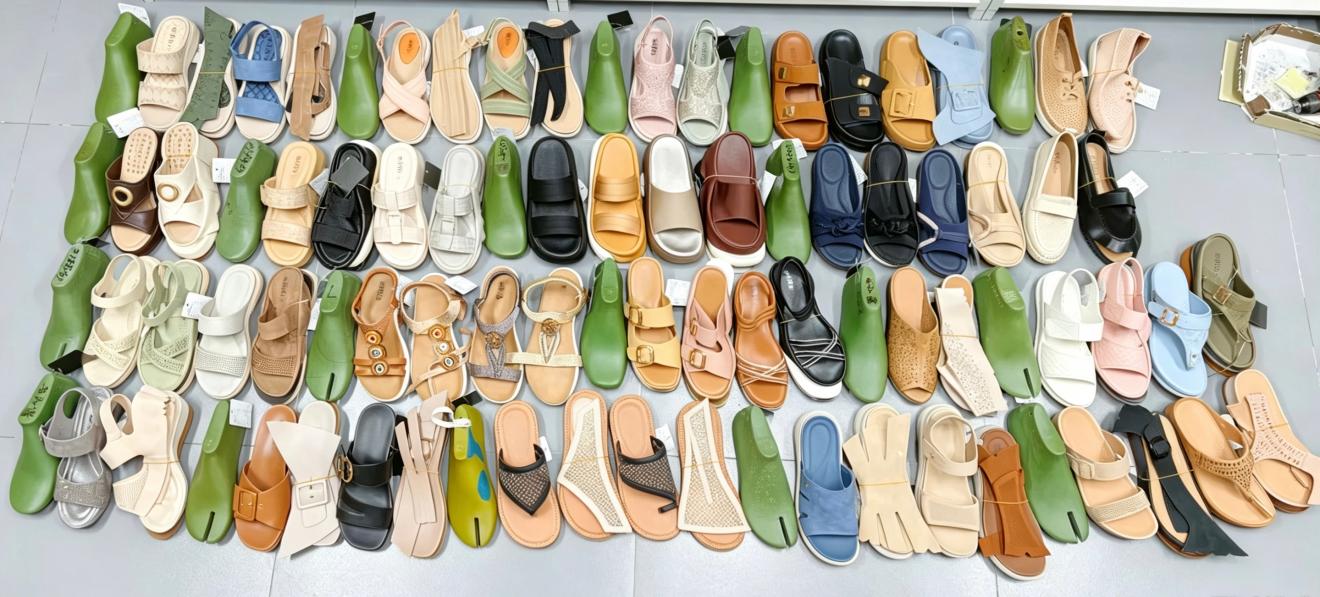

If you do not have your own footwear design, you can start with our existing footwear styles.
Customers can select suitable models from our existing collection based on their target market and product requirements.
We can then provide the selected footwear in semi-finished form for export.
Depending on the project, this may include:

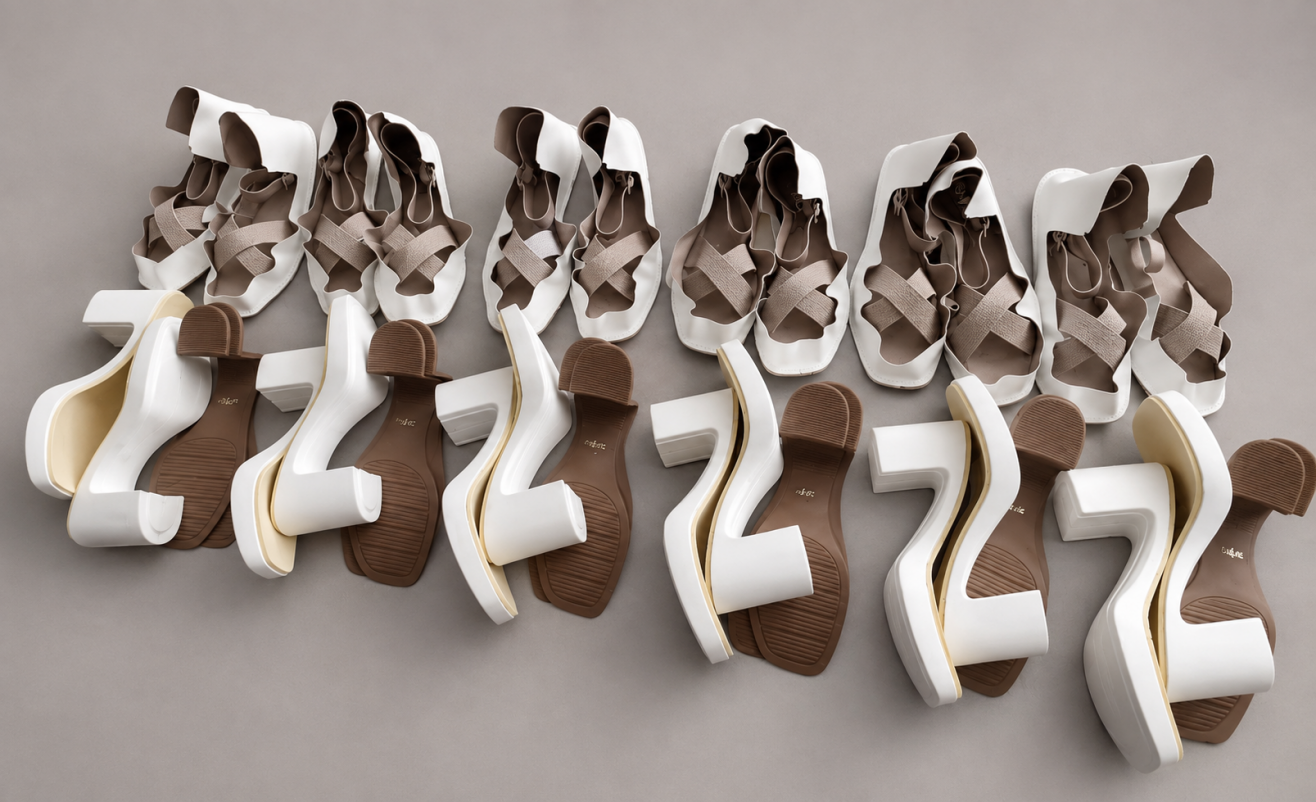

• Semi-finished uppers
• Outsoles
• Different upper construction options
• Midsole components where required
• Other components needed for final assembly
This option can help customers save development time and start with an existing footwear structure.
If you already have your own footwear design, we can also develop the semi-finished footwear from the beginning.
The first step is to provide us with your footwear design drawings or reference materials.

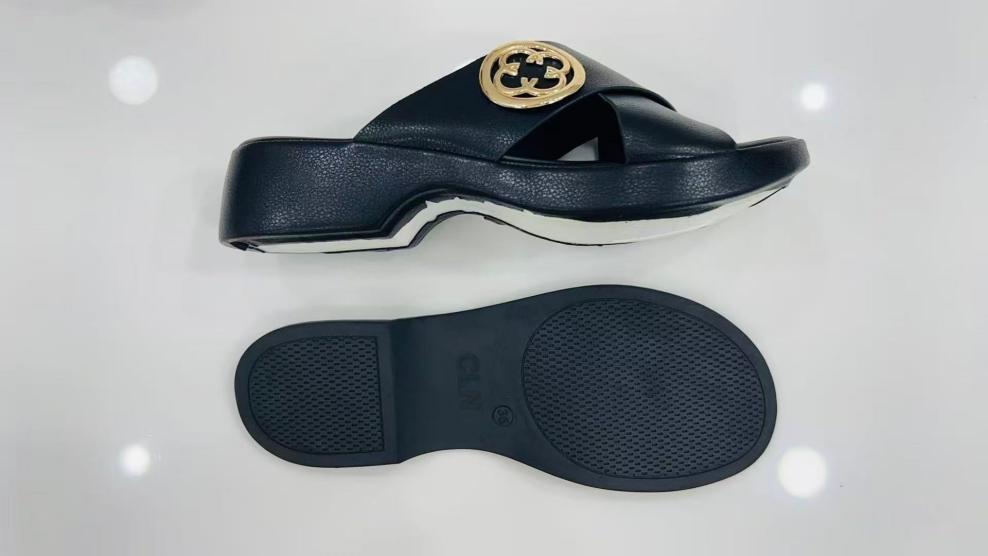

Based on your design, we can evaluate and select a suitable outsole solution.
There are generally two options.
If one of our existing outsole designs matches your requirements, you can choose from our existing outsole range.
This can help reduce development time and tooling costs.
If your design requires a unique outsole structure, tread pattern, logo, or appearance, we can develop a customized outsole mold according to your design.
This allows the outsole to be developed specifically for your footwear project.
Once the outsole solution has been confirmed, there is another critical component that customers sometimes overlook:

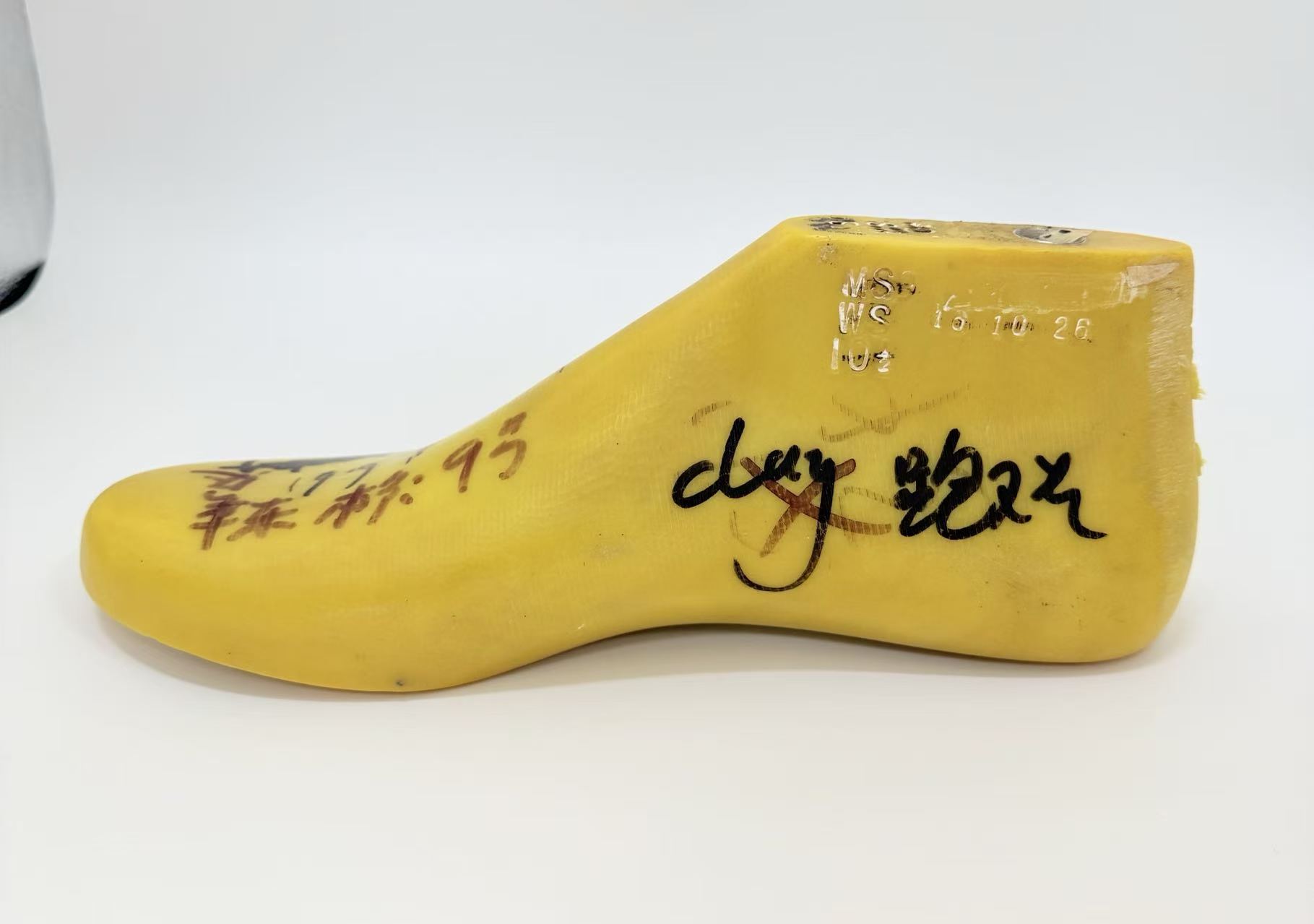

The last.
For custom CKD footwear development, the customer needs to provide the shoe last.
Why is the last so important?
Because the upper needs to be developed around the actual last.
The last determines important aspects of the footwear, including:
• Upper shape
• Toe shape
• Foot volume
• Instep height
• Heel shape
• Overall fitting
• Upper-to-outsole matching
Without the correct last, it is difficult to accurately develop the upper.
This is why we normally need the customer’s last before starting the upper development process.
Once the last and outsole are confirmed, we can move forward with upper development.
The upper is not limited to one construction method.
Depending on the customer’s requirements, different options can be considered, such as:
• Lasted upper
• Strobel construction
• With or without midsole covering
• Different edge and upper-to-sole construction methods
The exact construction method depends on the customer’s product design and final assembly process.
This is one of the most important points about CKD footwear.
CKD does not simply mean exporting an upper and an outsole separately.
The components need to be compatible with each other.
For example:
Last → Upper → Outsole → Assembly → Final Shoe
If one part does not match correctly, problems may appear during assembly.
Possible issues include:
• The upper does not fit the last correctly
• The upper and outsole do not match
• The toe shape is different from the expected design
• The heel area does not fit properly
• The instep or arch area is incorrect
• Assembly becomes difficult
• The final shoe shape does not meet expectations
Therefore, CKD footwear development requires coordination between several components before mass production.
5. Always Make a Full Trial Set Before Mass Prodition
This is a step we strongly recommend for both types of CKD projects.
Whether you are:
① Selecting one of our existing finished shoe styles and converting it into semi-finished footwear,
or
② Starting from your own design and developing the semi-finished footwear from scratch,
we recommend making a complete set of samples and conducting a trial production before mass production.
This is an important step, not an optional one.
The trial set allows the customer’s factory to test the actual semi-finished components and identify potential problems before a large order is produced.
The customer can use the trial set for several purposes.
The customer can check whether the upper, last, and outsole combination meets their requirements.
The customer’s factory can test the actual assembly process using the semi-finished components.
If necessary, the customer can conduct fitting or trial wearing to evaluate the overall shape, fit, and comfort.
Potential problems can be discovered before mass production, such as:
• Size or fitting issues
• Upper shape problems
• Outsole and upper mismatch
• Assembly difficulties
• Construction problems
• Appearance issues
If adjustments are needed, we can make the necessary changes before moving forward.
After the trial production is completed, the customer can evaluate the results internally.
If the customer confirms that the trial production is OK, we can then proceed with mass production.
This process helps reduce the risk of discovering major problems after mass production has already started.
A typical CKD development process can therefore be summarized as:
Design / Style Selection → Outsole Selection or Mold Development → Last Confirmation → Upper Development → Complete Trial Set → Customer Trial Production → Adjustment → Customer Approval → Mass Production
It may involve more steps than simply exporting finished footwear, but it provides better control over the final product.
The real challenge of CKD footwear is not simply producing individual components.
It is making sure that all the components work together.
A successful CKD project should consider:
Last + Upper + Outsole + Construction + Assembly Process
from the beginning.
This is especially important when customers plan to complete the final shoe assembly in their own factory.
The earlier potential compatibility issues are identified, the easier they are to solve.
At Huadong Holding Group, we can support different stages of footwear development, including:
• Existing footwear style selection
• Custom footwear development
• Outsole selection
• Custom outsole mold development
• Upper development based on the customer’s last
• Different upper construction options
• Semi-finished footwear development
• Trial production support
• Mass production coordination
Our goal is not simply to supply separate shoe components.
We aim to help customers develop a complete and workable CKD footwear solution that can be tested, adjusted, and eventually transferred into mass production.
CKD footwear export can provide flexibility for brands and manufacturers, especially when final assembly is planned in the destination market.
But successful CKD development requires more than separating the upper and outsole.
The last must be confirmed.
The upper must match the last.
The outsole must match the upper.
The construction method must match the customer’s assembly process.
And the complete semi-finished set should be tested before mass production.
Whether you choose a style from our existing footwear collection or develop your own design from scratch, we recommend making a complete trial set and conducting trial production before starting mass production.
A trial may seem like an extra step, but it is often the step that helps identify and solve problems before they become costly production issues.
If you are planning a CKD footwear project, whether you want to select from existing styles or develop your own design, Huadong Holding Group can work with you from outsole development to upper development and semi-finished production.
Let’s discuss your design and find the right CKD solution for your footwear project.
CKD stands for Completely Knocked Down. In a CKD footwear project, semi-finished components are supplied for final assembly at the customer’s factory in the destination country.
Yes. An existing footwear style can be supplied in semi-finished form, with the component set and upper construction selected to suit the project and final assembly process.
Not always. An existing outsole may be suitable for your design. A custom mold may be needed when the project requires a unique outsole structure, tread pattern, logo or appearance.
The upper is developed around the actual last. The last affects toe shape, foot volume, instep height, heel shape, fit and the match between the upper and outsole.
The customer’s factory should check upper-to-last fit, upper-to-outsole matching, shoe shape and the assembly process. Fitting or wear testing can also be used to assess the completed sample where required.
Mass production should follow the complete trial set, customer trial production, any necessary adjustments and customer approval. This helps identify component and assembly problems before a large order is produced.
