Why ESD Insoles Are Becoming a Critical Component in Modern Safety Footwear Design

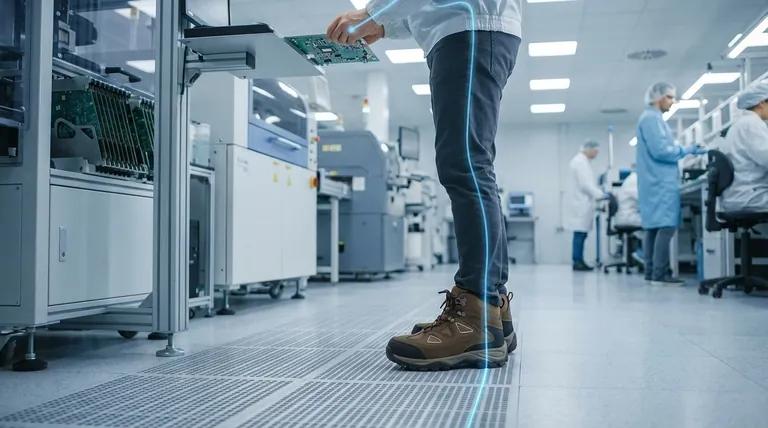

In today’s electronics manufacturing, semiconductor production, automotive assembly, and battery production environments, electrostatic discharge (ESD) protection is no longer optional — it has become an engineering requirement directly affecting product safety and compliance.

While many footwear buyers focus primarily on outsole durability, slip resistance, or toe protection, one critical component is often underestimated: The ESD insole system.

A properly engineered ESD insole plays a central role in controlling electrical resistance across the entire footwear structure and ensuring safe dissipation of electrostatic charges generated during walking movement.

According to IEC 61340-5-1, electrostatic discharge as low as 30 volts can damage highly sensitive semiconductor devices.

For comparison:

Human body static electricity during walking on carpet can generate 3,000V – 35,000V

Walking with standard synthetic footwear can create 2,000V – 15,000V

Sensitive integrated circuits may fail permanently at below 100V

This explains why industrial footwear manufacturers are paying increasing attention to material conductivity systems.

The Resistance Range That Actually Matters

For ESD-certified footwear systems, electrical resistance usually needs to remain within controlled ranges.

Common standards require:

Conductive Footwear (C)
→ Resistance ≤ 100 kΩ

Antistatic Footwear (A)
→ Resistance between 0.1 MΩ – 1000 MΩ

This resistance balance is critical.

If resistance is too low, the wearer may be exposed to unintended electrical hazards.

If resistance is too high, electrostatic charges cannot dissipate efficiently.

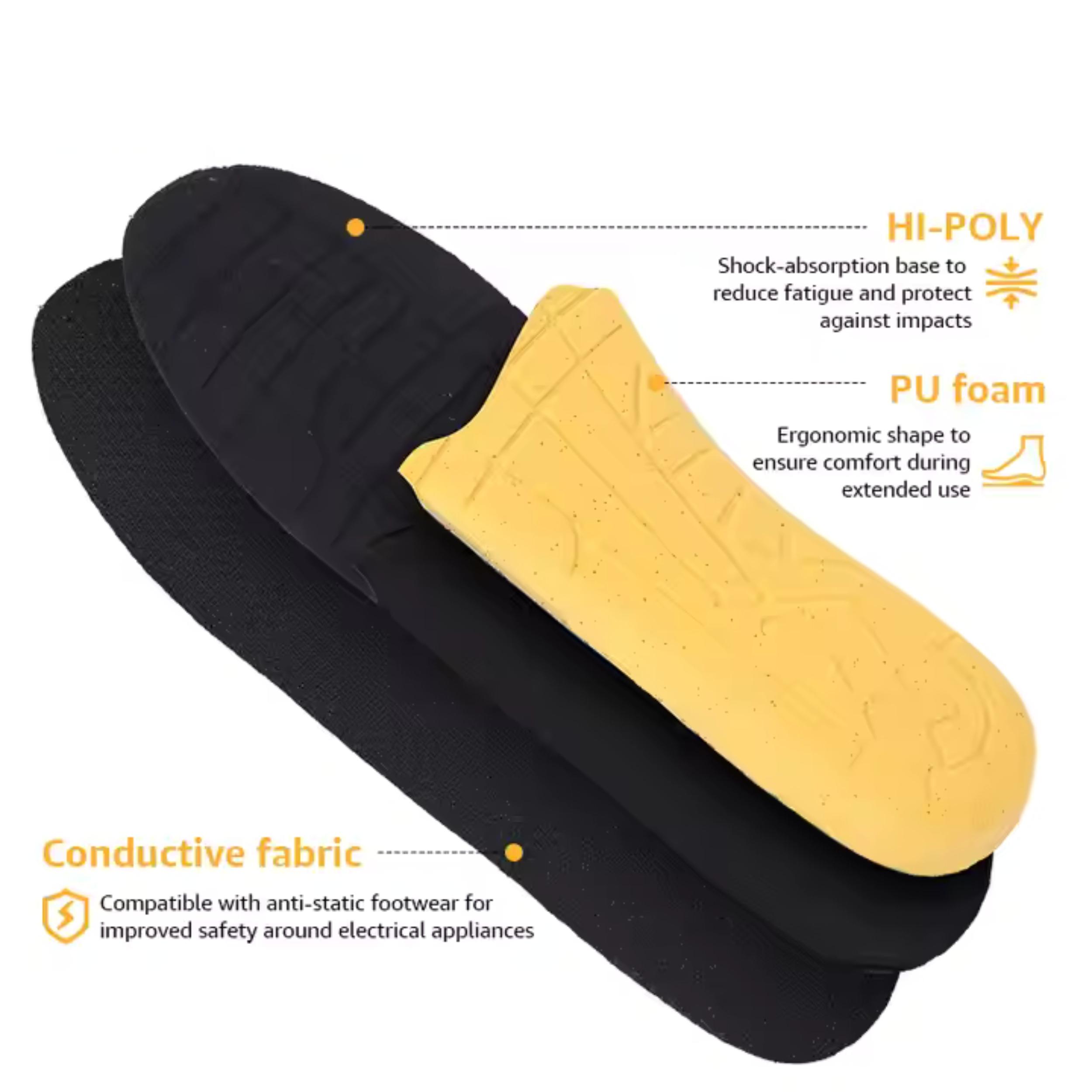

Why Insole Material Selection Changes Performance

Many factories still rely on standard EVA or PU sockliner constructions.

The problem: Traditional foam materials act as electrical insulators.

For true ESD compliance, insole materials require engineered conductive pathways.

The most common solutions include:

• Carbon-loaded PU foam
• Conductive EVA compounds
• Carbon fiber woven conductive fabric layers
• Permanent antistatic additives blended into polymer structures

The challenge is maintaining conductivity stability over time.

In internal wear-cycle simulations, low-grade conductive additives often show 15–30% conductivity degradation after repeated compression cycles, particularly under humid production environments.

This directly impacts certification reliability during product lifespan.

ESD Footwear Is Growing Fast With EV Battery Manufacturing

The rapid expansion of electric vehicle battery manufacturing is driving demand for advanced ESD footwear systems.

According to MarketsandMarkets industrial ESD protection market report, the global ESD protection market is projected to reach USD 3.4 billion by 2028, largely driven by:

Semiconductor manufacturing

Lithium battery production

Precision electronics assembly

Automated robotic production lines

This trend means footwear manufacturers are increasingly required to engineer not only durable outsoles —

but fully integrated ESD-certified footwear systems.

Engineering Is More Than Passing One Lab Test

In real footwear production, ESD performance depends on system integration:

Upper → Strobel stitching → Insole → Midsole → Outsole → Ground contact surface

Even if outsole compounds are conductive, a poorly designed insole layer can interrupt the entire discharge path.

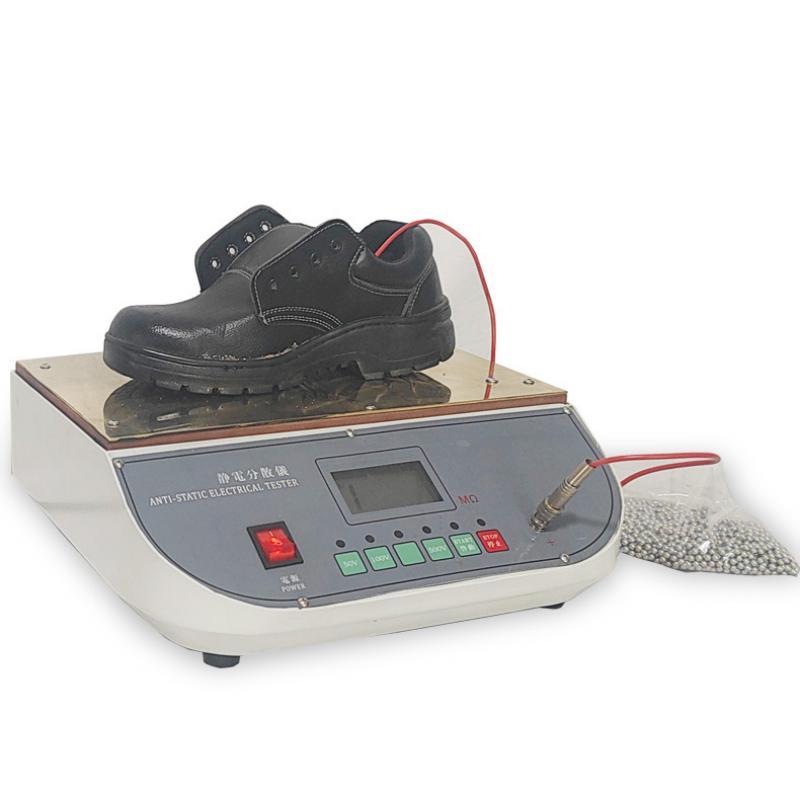

This is why advanced footwear development teams now test complete resistance pathways rather than individual material conductivity alone.

At Huadong Sole, we are working closely with safety footwear brands developing outsole systems compatible with integrated ESD-compliant footwear construction.

Because in industrial footwear - compliance begins from the inside.

Three Questions For Safety Footwear Developers

1. Are you still testing outsole conductivity separately instead of full footwear resistance?

2. Have you validated long-term conductivity stability after compression cycles?

3. Is your current insole material truly designed for IEC 61340 compliance?

Let’s discuss your next ESD footwear development project.

Frequently Asked Questions (FAQ)

Q1: What is ESD footwear?

A: ESD (Electrostatic Discharge) footwear is specially designed to control and safely dissipate static electricity generated by the wearer during movement. It prevents electrostatic discharge from damaging sensitive electronic components in industries such as semiconductor manufacturing, electronics assembly, and battery production.

Q2: Why is the insole so important for ESD protection?

A: The insole serves as the direct contact point between the wearer's foot and the footwear system. If the insole material is an electrical insulator (like standard EVA or PU foam), it can interrupt the entire discharge path—even if the outsole is conductive. A properly engineered ESD insole ensures consistent electrical resistance across the entire footwear structure.

Q3: What are the common ESD footwear resistance standards?

A: According to IEC 61340-5-1 and other industry standards:

• Conductive Footwear (C): Resistance ≤ 100 kΩ

• Antistatic Footwear (A): Resistance between 0.1 MΩ – 1000 MΩ

Maintaining the correct resistance range is critical. Too low may expose the wearer to electrical hazards; too high prevents effective charge dissipation.

Q4: How much static electricity can the human body generate?

A: The human body can generate significant static charges in everyday situations:

• Walking on carpet: 3,000V – 35,000V

• Walking with standard synthetic footwear: 2,000V – 15,000V

• Sensitive integrated circuits can fail permanently at below 100V

This is why ESD footwear is essential in electronics manufacturing environments.

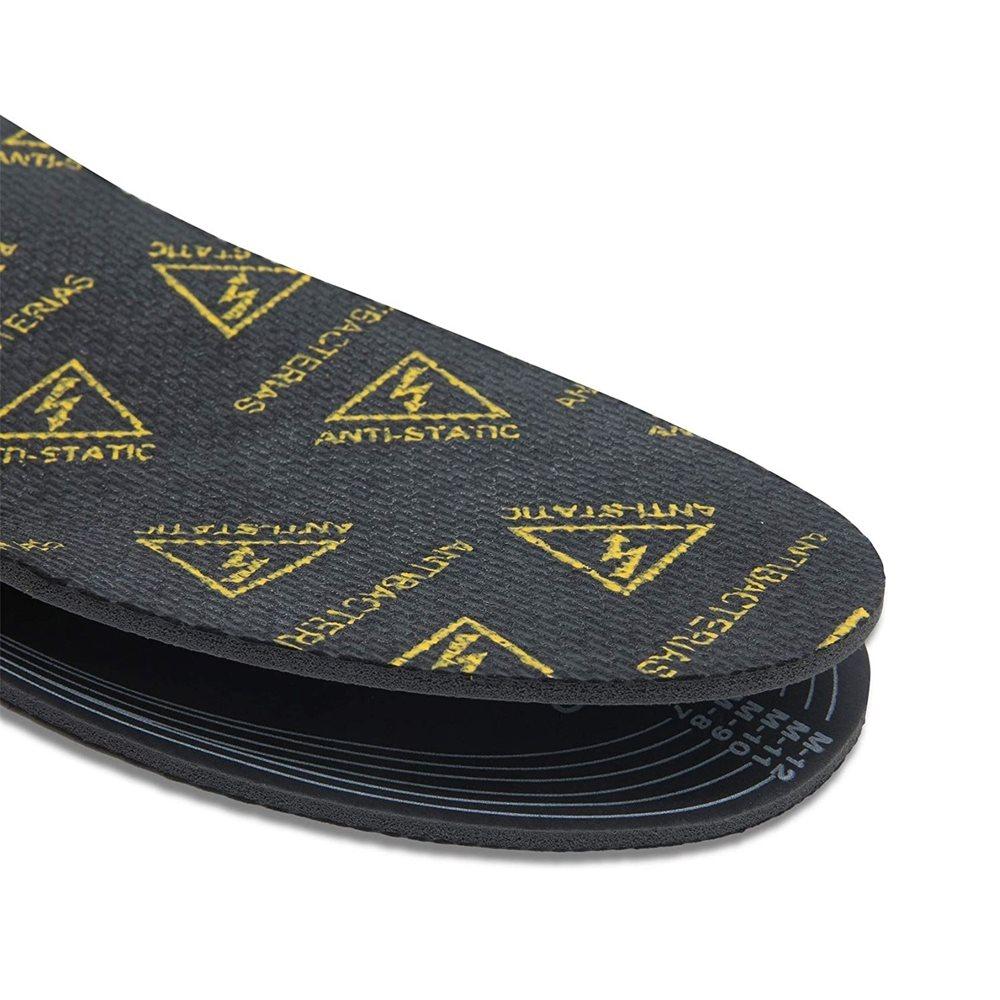

Q5: What materials are used in ESD insoles?

A: Common ESD insole materials include:

• Carbon-loaded PU foam

• Conductive EVA compounds

• Carbon fiber woven conductive fabric layers

• Permanent antistatic additives blended into polymer structures

The challenge is maintaining conductivity stability over time, especially after repeated compression and under humid conditions.

Q6: Do ESD insoles lose their conductivity over time?

A: Yes, if not properly engineered. In wear-cycle simulations, low-grade conductive additives can show 15–30% conductivity degradation after repeated compression cycles, particularly in humid production environments. This is why long-term conductivity validation is essential for certification reliability.

Q7: Which industries require ESD footwear?

A: ESD footwear is critical in:

• Semiconductor manufacturing

• Lithium battery production

• Precision electronics assembly

• Automotive assembly

• Automated robotic production lines

• Medical device manufacturing

• Aerospace and defense electronics

Q8: Is ESD footwear the same as anti-static footwear?

A: They are related but not identical. Antistatic footwear is a broader category that includes ESD-certified footwear. ESD footwear refers specifically to products meeting strict resistance standards (typically 0.1 MΩ – 1000 MΩ) for electronics protection, while antistatic footwear may have wider resistance ranges for general safety applications.

Q9: Does the outsole alone determine ESD performance?

A: No. ESD performance depends on system integration across the entire footwear construction:

Upper → Strobel stitching → Insole → Midsole → Outsole → Ground contact surface

Even if the outsole is conductive, a poorly designed insole layer can interrupt the discharge path. Complete footwear resistance testing is more reliable than testing individual components separately.

Q10: How often should ESD footwear be tested?

A: ESD footwear should be tested regularly according to workplace safety protocols. Common practice includes daily resistance testing in high-risk environments, periodic laboratory testing per IEC 61340 standards, and re-certification after significant wear or environmental changes (e.g., humidity variations).

Q11: Can ESD footwear be used in wet or humid environments?

A: Yes, but humidity can affect electrical resistance performance. Many ESD footwear manufacturers engineer materials to maintain conductivity within specified ranges across varying humidity levels. However, performance validation under actual working conditions is recommended.

Q12: Is ESD footwear more expensive than standard safety footwear?

A: Generally, yes. ESD footwear requires specialized conductive materials, precision engineering, and rigorous testing to maintain resistance stability over time. The higher cost reflects the added material performance and manufacturing quality required for compliance.

Q13: What is the difference between conductive (C) and antistatic (A) footwear?

A:

• Conductive (C): Lower resistance (≤ 100 kΩ), designed for environments requiring rapid charge dissipation.

• Antistatic (A): Moderate resistance (0.1 MΩ – 1000 MΩ), designed to dissipate static charges slowly and safely while protecting the wearer from electrical shock.

Q14: Can standard EVA or PU insoles be used in ESD footwear?

A: Not effectively. Standard EVA and PU foam materials are electrical insulators and will block the discharge path. For true ESD compliance, specially engineered conductive insoles with carbon loading, conductive fibers, or permanent antistatic additives are required.

Q15: What are the key considerations when selecting ESD insole materials?

A: Key factors include:

• Initial conductivity within required resistance range

• Stability after repeated compression cycles

• Performance under varying humidity and temperature

• Compatibility with the full footwear construction

• Long-term durability and abrasion resistance

• Certification compliance with IEC 61340-5-1 and industry standards

Q16: Will ESD footwear demand continue to grow?

A: Yes. According to MarketsandMarkets, the global ESD protection market is projected to reach USD 3.4 billion by 2028, driven by rapid expansion in semiconductor manufacturing, electric vehicle battery production, and automated electronics assembly. This growth is increasing demand for fully integrated ESD-certified footwear systems.

Q17: Should footwear developers test the whole shoe or just the outsole?

A: Advanced development teams now test complete resistance pathways rather than individual material conductivity alone. Full footwear resistance testing provides a more accurate assessment of real-world ESD performance and ensures certification reliability throughout the product lifecycle.

Q18: What should I ask my ESD footwear supplier?

A: Consider asking:

• Are you testing full footwear resistance or just outsole conductivity?

• Have you validated long-term conductivity stability after compression cycles?

• Is your insole material truly engineered for IEC 61340 compliance?

• What is your quality control process for maintaining consistency across production batches?

• How does humidity and temperature affect your product's performance?
